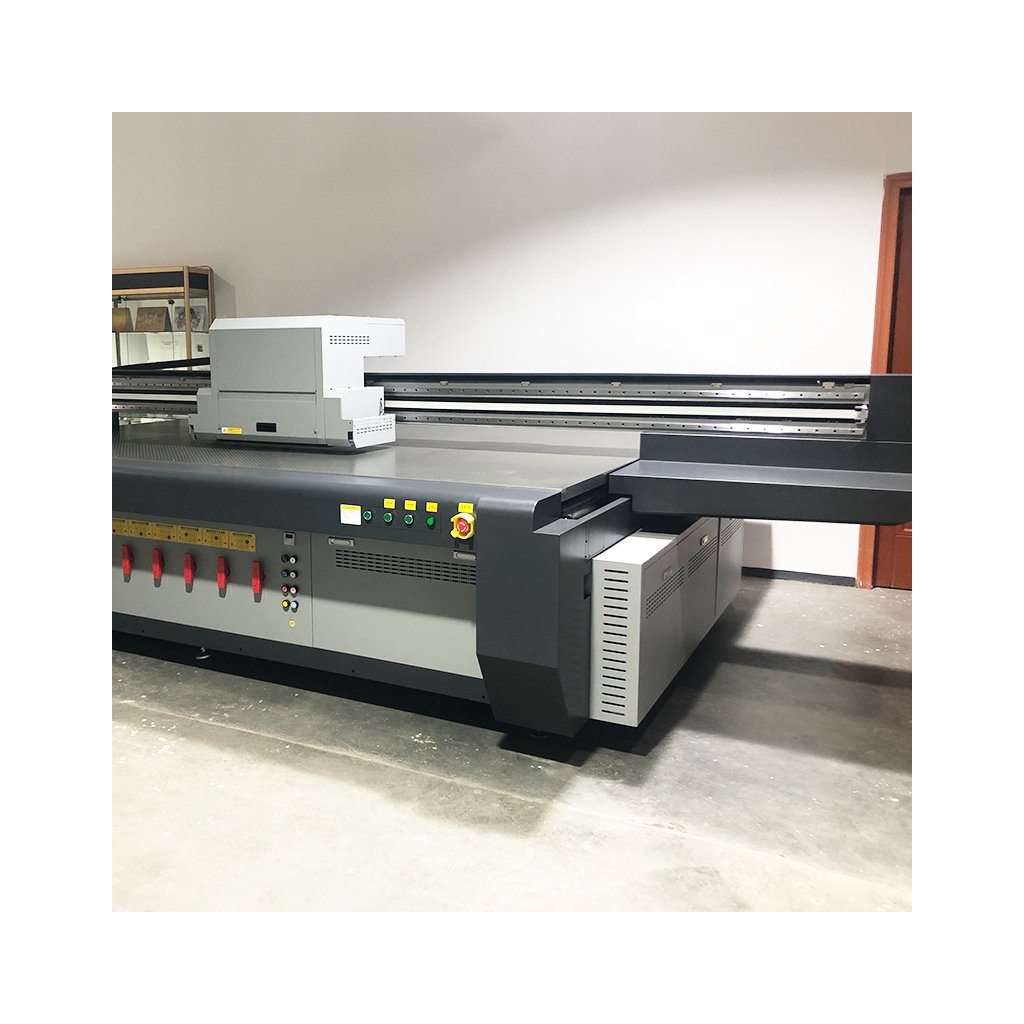

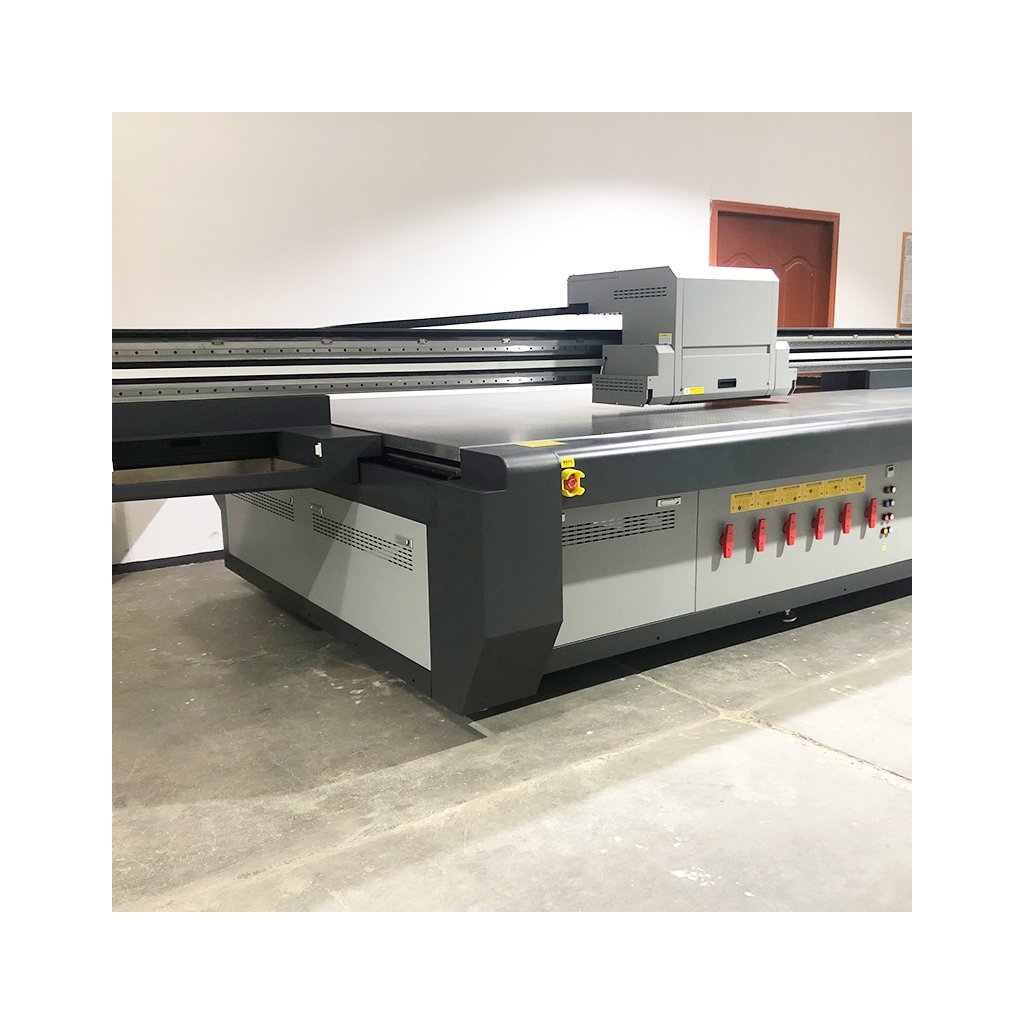

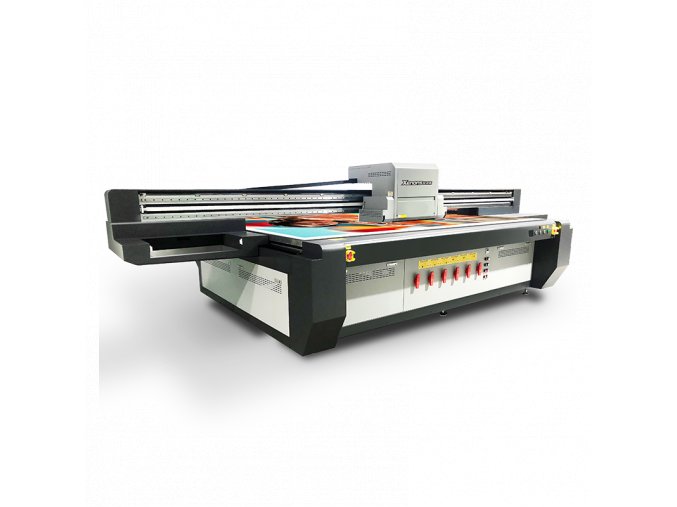

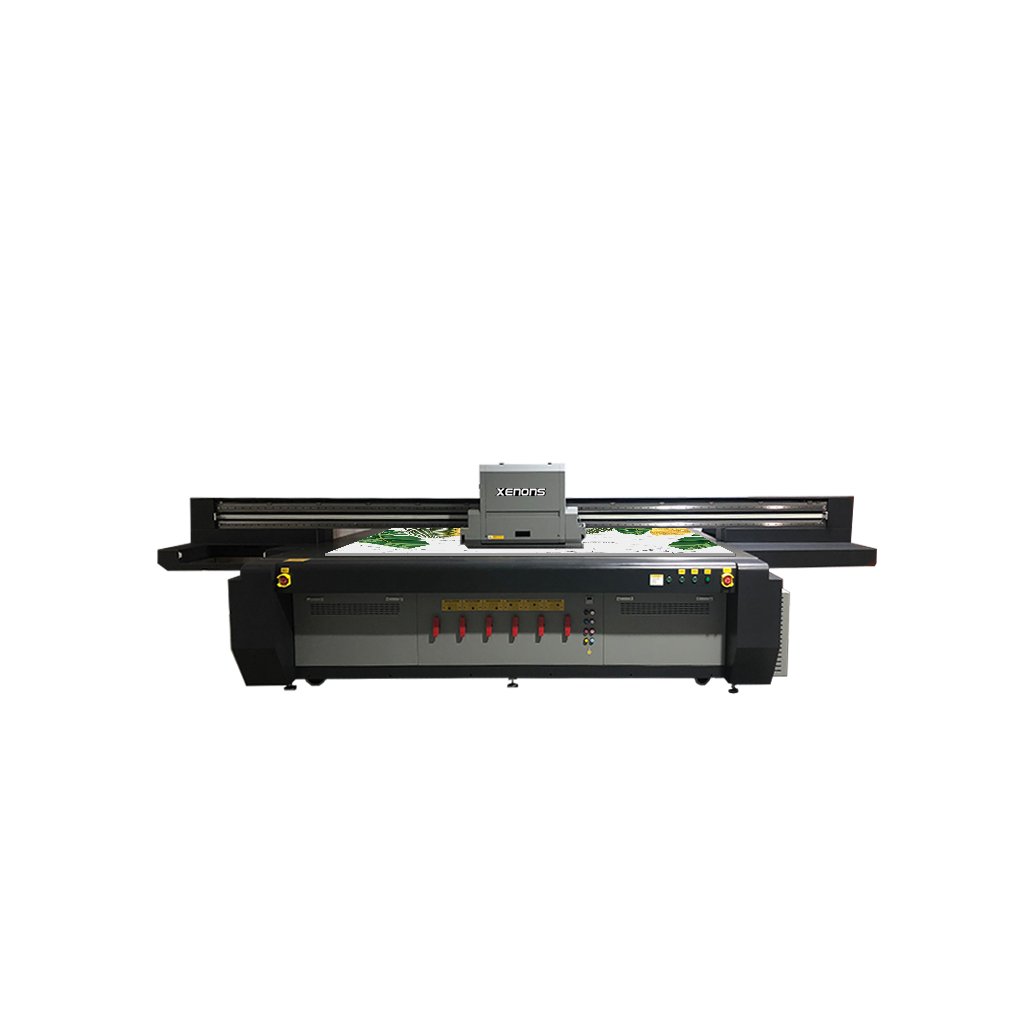

XENONS X3220-PRO UV 320x200 cm Flatbed printer for Ricoh GEN6 heads

100

Big Boy, high speed and hi-performance large format UV LED Flatbed Printer with 3 GEN6 Heads by Ricoh

INCLUDING TRANSPORT TO YOU, INCLUDING INSTALLATION & SCHOOLING, INCLUDING 3x RICOH GEN5 HEADS, INCLUDING SAI FLEXIPRINT RIP SW, INCLUDING 1 YEAR WARRANTY, INCLUDING ONLINE TECHNICAL SUPPORT BY XENONS EU TEAM

Printer supports 2-9 heads of GEN6 in 1-4 rows

other heads set up possible: 2x Gen6 CMYK - price less EUR 2.500,-

other heads set up possible: 4x Gen6 CMYKLcLm-W - price + EUR 2.500,-

other heads set up possible: 5x Gen6 CMYKLcLm-W- V - price + EUR 5.000,-

For more heads configurations we do prepare the offer upon request.



  • UV LED Technology
  • Flatbed Printer
  • Water cooled LED lamps
  • YIPS printing kontrol system
  • 6 independent vacuum zones - 2 independent vacuum pumps
  • Reverse vacuum function with pedal control "hands free"
  • Pneumatic pins - for easy media handling, (compressor not included)
  • 4.0 Industry ready printer
  • Magnetic raster
  • Linear (MagLev) engine optional
  • Printing head warranty 6 months - (conditions applied)



The printer will be delivered to you by the local XENONS dealer in your country in whole Europe.Conditions and prices described here are final, no other surcharged for installation or services is demanded.  If there is no authorized dealer of Xenons in your country, the printer will be delivered to your place and installed by Xenons Europe office from our European warehouse in Brno, Czech republic.

WE DO LOOK FOR LOCAL DEALERS IN VARIOUS COUNTRIES, PLEASE CONTACT US IN CASE OF INTEREST TO BECOME A XENONS REPRESENTATIVE IN YOUR COUNTRY


  • Skladem
€79 900

Parameters

Category: LED UV Flatbed printers
Weight: 2200 kg
Print head: GEN5/6 * 2-8
Media size: 3200 x 2000 mm
No.of colors: 8-CMYKLcLmWV
Printing resolution: up to 3600 DPI
Max. media thickness: 90 mm
Print speed: up to 75 sqm/h
RIP SW: Sai; Onyx/Caldera as optional
Print
5
6
7
8


Description

Big Boy Xenons large format industrial Flatbed UV LED Printer

Printer supports 2-9 heads of GEN5 or GEN6 in 1-4 rows

  • Including Flexi Print Sai RIP SW (ONYX or Caldera optional)
  • Including foot pedal for vacuum control
  • Including  2x antistatic bars
  • Including water cooled lamps
  • Including YIPS printing control system
  • Wide printing size and 100 mm thickness of media
  • Micro-feathering technology
  • Variable ink drop technology
  •  Eco-Enviromentally friendliness of curing
  • Clear ink application
  • Variable color configuration and easy update
  • Three-layer printing at the same time (Picture - white-Picture)
  • Anti crash system for head protection
  • Stable and reliable servomotor with Hardware drivers
  • High speed dual guide rail with low noise
  • Dual UV LED curing system
  • 6x vacuum zones vacuum tabel with 2 vacuum pumps
  • Reverse vacuum function with pedal control "hands free"
  • Pneumatic pins for easy media handling (compressor not included)
  • PC power slot inside the printer body
  • Rotating PC screen holder
  • Magnetic raster
  • 4.0 Industry ready printer
  • Linear engine (Magnetic levitation engine) optional



The printer will be delivered to you by the local XENONS dealer in your country in whole Europe.Conditions and prices described here are final, no other surcharged for installation or services is demanded.  If there is no authorized dealer of Xenons in your country, the printer will be delivered to your place and installed by Xenons Europe office from our European warehouse in Brno, Czech republic.

WE DO LOOK FOR LOCAL DEALERS IN VARIOUS COUNTRIES, PLEASE CONTACT US IN CASE OF INTEREST TO BECOME A XENONS REPRESENTATIVE IN YOUR COUNTRY
